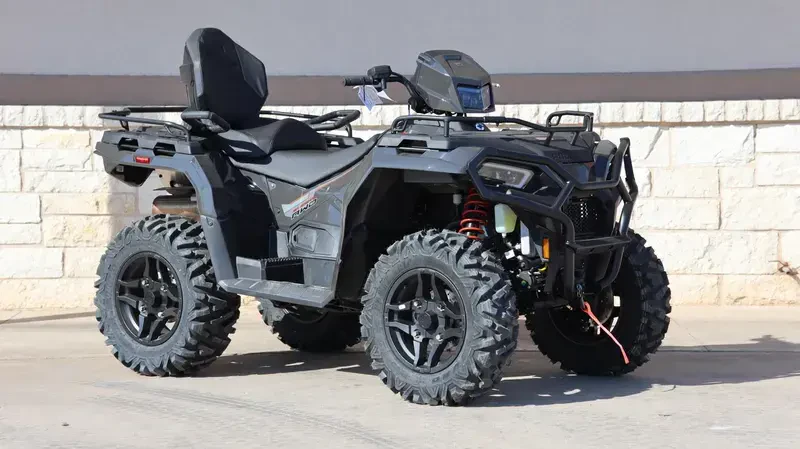

New 2025 Polaris SPORTSMAN TOURING 570 ULTIMATE GRANITE GRAY

← Go Back
MSRP: $14,499
Quick Quote
  • Stock #: P07918
  • VIN: 4XASJR570SB607918
  • Engine: 567 cc (34.6 ci) Liquid cooled Single-Cylinder
  • Exterior Color: GRANITE GRAY
  • Transmission: Continuously Variable (CVT)
  • Fuel Type: Gas
Get Pre-Approved
Trade-In Appraisal
Make an Offer
Check Availability
Request More Info
Schedule a Test Ride
X

Standard Specifications

ENGINE
  • Engine Brand Name: ProStar™
  • Engine Type: Single-Cylinder
  • Cylinders: 1
  • Engine Stroke: 4-Stroke
  • Horsepower (bhp): 44
  • Horsepower (kW): 32.8
  • Cooling: Liquid
  • Valves: 4
  • Valves Per Cylinder: 4
  • Valve Configuration: DOHC
  • Bore (mm): 99
  • Bore (in): 3.9
  • Stroke (mm): 73.6
  • Stroke (in): 2.9
  • Displacement (cc): 567
  • Displacement (ci): 34.6
  • Compression Ratio: 10:1
  • Starter: Electric
  • Fuel Requirements: Regular
  • Fuel Type: Gas
TRANSMISSION
  • Transmission Type: Continuously Variable (CVT)
  • Primary Drive (Rear Wheel): Shaft
  • Primary Drive (Engine / Transmission): Belt
  • Reverse: Yes
  • Transmission Brand: Polaris Variable Transmission (PVT)
  • Hi / Low Range: Yes
  • Primary Drive (Front Wheel): Shaft
WEIGHT
  • Dry Weight (lbs): 911
  • Dry Weight (kg): 413
  • Payload Capacity (lbs): 485
  • Payload Capacity (kgs): 220
  • Towing Capacity (lbs): 1350
  • Towing Capacity (kgs): 612
PERFORMANCE
  • Engine Displacement to Weight (cc): 0.62
FLOOR BOARDS
  • Floor Board Location: Driver and Passenger
SKID PLATE
  • A-Arm Skid Plate (Front): Yes
  • A-Arm Skid Plate (Rear): Yes
  • Bash Plate (Front): Yes
REAR SUSPENSION
  • Rear Suspension Type: Independent Double A-Arm
  • Rear Travel (in): 9.5
  • Rear Travel (mm): 241
  • Rear Adjustable Shock / Spring Pre-Load: Yes
  • Number Rear Shock Absorbers: 2
  • Rear Suspension Material: Steel
TIRES
  • Tire Brand: Duro
  • Front Tire Width: 8
  • Front Wheel Diameter: 14
  • Rear Tire Width: 10
  • Rear Wheel Diameter: 14
  • Front Tire (Full Spec): Duro: 26 x 8-14
  • Rear Tire (Full Spec): Duro: 26 x 10-14
SEATS
  • Seat Type: One-Piece
  • Seat Material: Vinyl
  • Seat Location: Driver and Passenger
SEAT BACKREST
  • Backrest Type: Detachable
  • Backrest Location: Passenger
FUEL LEVEL WARNING
  • Fuel Level Warning Type: Gauge
CUPHOLDER
  • Number Of Cupholders: 2
RACK RAILS
  • Rack Rails Location: Front
PAINT
  • Primary Color: Silver
  • Paint Swatch File Name: Polaris/Granite_Gray.gif
LIMITED SLIP DIFFERENTIAL
  • Limited Slip Differential Location: Rear
STEERING
  • Steering Type: Power
  • Steering Control: Handlebar
WINCH
  • Weight (lbs): 3500
  • Weight (kgs): 1587.6
  • Winch Brand Name: Polaris
  • Length (ft): 50



CARBURETION
  • Fuel Injector: Yes
  • Carburetion Type: Fuel Injected
TECHNICAL SPECIFICATIONS
  • Length (in): 91
  • Length (mm): 2311
  • Width (in): 48
  • Width (mm): 1212
  • Height (in): 59
  • Height (mm): 1500
  • Wheelbase (in): 56
  • Wheelbase (mm): 1432
  • Ground Clearance (in): 11.5
  • Ground Clearance (mm): 290
  • Length (ft): 7.58
  • Length (ft/ft): 7
  • Length (ft/in): 7
CAPACITIES
  • Fuel Capacity (gal): 6.75
  • Fuel Capacity (l): 25.5
EXTERIOR
  • Frame: Steel
  • Body Material: Composite
EXTERIOR GUARDS
  • Hand Guards: Yes
  • Brush Guard: Yes
SUSPENSION
  • Front Suspension Type: McPherson Strut
  • Front Travel (in): 8.2
  • Front Travel (mm): 208
WHEELS & TIRES
  • Wheels Composition: Aluminum
  • Front Tire Diameter (in): 26
  • Rear Tire Diameter (in): 26
BRAKES
  • Front Brake Type: Hydraulic Disc
  • Rear Brake Type: Hydraulic Disc
SEAT SPECIFICATIONS
  • Seat Height (in): 35.7
  • Seat Height (mm): 908
  • Number Of Seats: 2
TEMPERATURE WARNING
  • Temperature Warning Type: Gauge
REAR RACK
  • Capacity (lbs): 180
  • Capacity (kgs): 81.6
FRONT RACK
  • Capacity (lbs): 90
  • Capacity (kgs): 40.8
HEADLIGHTS
  • Type: LED
DRIVELINE
  • Driveline Brand: On-Demand™
  • Driveline Type: Selectable 4X2 / 4X4
  • Number Of Driveline Modes: 2
DIFFERENTIAL LOCK
  • Differential Lock Location: Rear
REAR HITCH
  • Size (in): 2
  • Size (cm): 5.1
  • Rear Hitch Type: Receiver
