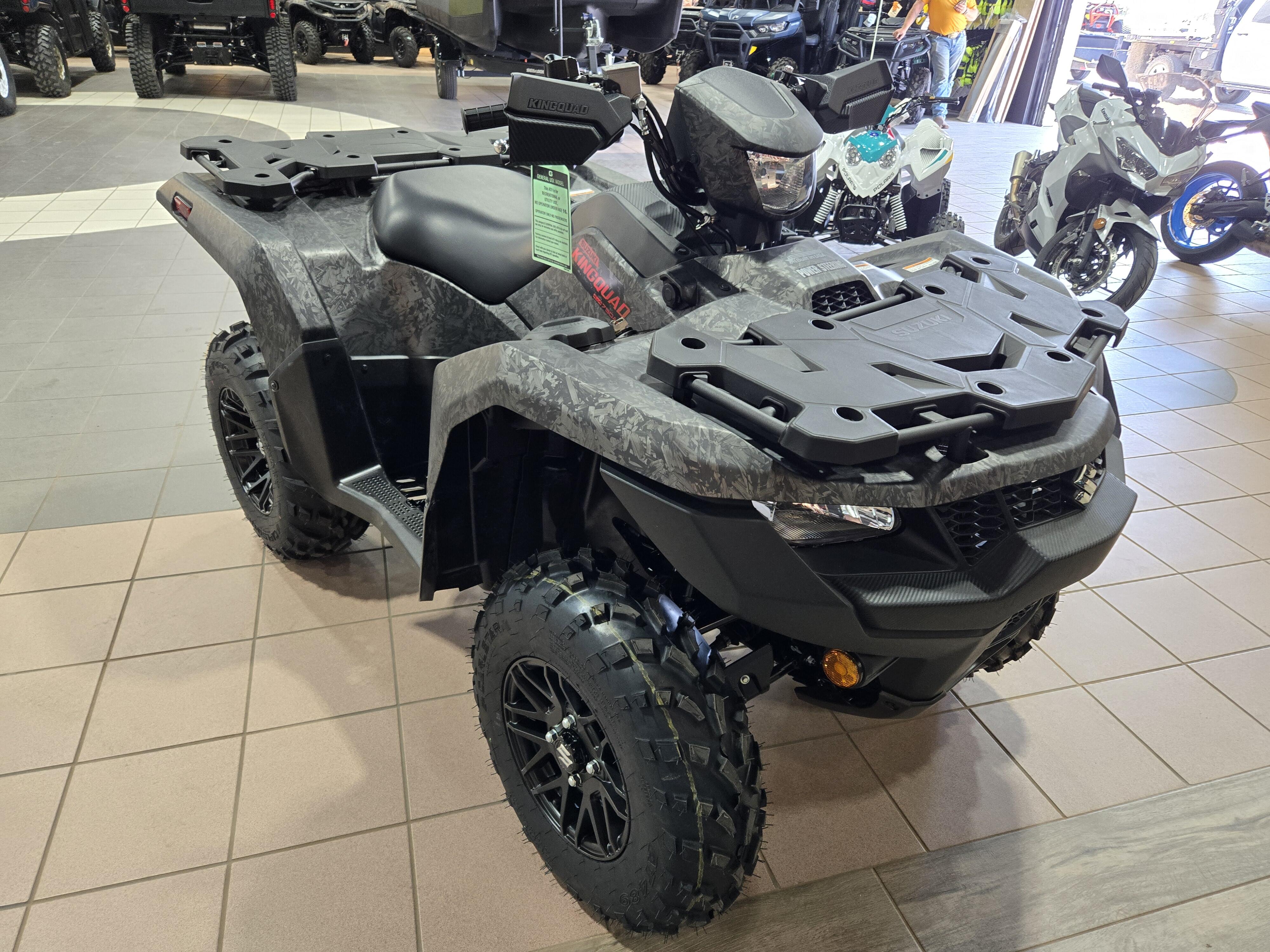

New 2025 Suzuki KINGQUAD 750AXI POWER STEERING SE CAST CARBON

The 722cc, DOHC, single-cylinder, liquid-cooled, four-stroke engine delivers strong low- to mid-range torque and impressive peak horsepower. The four-valve cylinder head has large 36mm intake valves and straight ports for superb cylinder charging efficiency. A sportbike-derived chain-and-gear camshaft drive system helps create a compact engine. The engine’s high-capacity oil pump delivers a strong flow of cooling oil to the piston oil jet system to help increase engine durability. Advanced Suzuki Fuel Injection provides superb throttle response and fuel efficiency while delivering power consistently across the full rev range. It also improves engine starting in all conditions. The KingQuad easily achieves US emissions compliance, including California models that conform to the state’s stringent evaporative emissions standard and are eligible for California off-highway vehicle (OHV) registration.

The Quadmatic™ CVT-type automatic transmission provides versatility and convenience with a fender-mounted gate-type shifter for high/low range selection. Its advanced engine-braking system minimizes free-wheeling with the throttle off to help reduce speed when riding downhill. Carefully selected CVT spring and weight calibration provides smooth and strong acceleration from stops and matches the engine’s performance to the chassis’ high towing capacity. The CVT tuning provides controlled engine braking to boost rider confidence and comfort during downhill riding and a compact torque-sensing limited-slip front differential offers potent traction plus light steering. A differential-lock system provides serious 4WD traction. Handlebar-mounted push-button controls permit easy selection between 2WD, 4WD, and differential-lock 4WD. An override button on the left handlebar can be used to override the normal speed limiter when getting out of mud.

Independent double A-arm front suspension (6.7 inches of wheel travel) and the fully independent, A-arm/I-beam rear suspension (7.7 inches of wheel travel) use four large diameter, gas-charged shock absorbers with five-way spring preload adjustment. To increase rider comfort, make the ATV easier to ride, and increase towing capacity, the KingQuad’s frame has thick-wall frame tubes and reinforced brackets in key areas. The sealed, multi-plate rear brake system’s foot brake lever ratio helps provide consistent performance. The rear brake’s clutch-type design is highly durable, has reduced unsprung weight, and minimal maintenance requirements. High traction 25-inch Carlisle® tires are mounted on lightweight, cast aluminum wheels with a special blacked-out finish.

The multi-function instrument panel has excellent appearance and visibility and provides service reminders based on running time or mileage. The instrumentation includes LCD readouts for the speedometer, odometer, twin trip meter, hour meter, clock, fuel level, riding range, and drive mode. There are LED indicators for high, low, neutral, reverse, 2WD/4WD, and differential-locked 4WD and LED cautions for fuel injection and engine temperature. The 35-watt handlebar-mounted headlight illuminates the trail in the direction you are steering the ATV. Dual 35-watt headlights (with high- and low-beam settings) are part of the KingQuad’s distinctive bodywork. A high-output, three-phase charging system feeds an 18-amp maintenance-free battery for abundant power for easy starting and accessory use. A sealed 12V accessory outlet is standard. Winch-ready mounts and wire conduit make winch installation simple.

The bold, angular bodywork is coated in the outdoor-ready True Timber Kanati Camouflage pattern and features high-clearance fenders that offer great protection for the rider. Refined panels simplify maintenance needs, such as oil level checks and fuel and air filter service. The rugged front and rear steel-tube cargo racks have wrinkle paint finish for durability and scratch resistance. The handguards (knuckle covers) help protect the rider’s hands from the elements and are styled to match the KingQuad’s bodywork. The receiver-type trailer hitch mount makes it easy to select the type of equipment you want to move with the KingQuad’s higher towing capacity (up to 1322 pounds). Included with this KingQuad is a ball mount, hitch pin, and R-clip making it easy to setup your ATV for towing (a trailer ball or hook is not included).

A variety of Genuine Suzuki Accessories are available, including winches, windshield, front and rear bumpers, quick-release snowplow, aluminum skid pans, rack extensions, utility box, and more. Minimum rider age: 16 years old Suzuki’s 24-month limited warranty is much longer than other ATV warranties. Longer coverage and other benefits are available through Suzuki Extended Protection (SEP).
